EdgeFit 2

EdgeServer - Fit Edition

A cloud managed edge platform providing advanced SD-WAN, Security, QoS, and LAN services, the EdgeServer Fit edition can be placed almost anywhere.

Running full Edge OS, the Fit 2 provides the right amount of features for targeted installs and can be configured to do almost anything – including bonding 4G/5G and Starlink, out of the box.


Compact Network Management

A cloud managed edge platform providing advanced SDWAN, Security, QoS, and LAN services

Powerful user interface with Real-Time Metering and Analytics

Combine and control WAN sources with Advanced Routing and Bandwidth Bonding

Protect and Secure Network Integrity with Deep Packet Inspection (DPI), Traffic Policies, and VPN

Compact, Fanless


Quickly add Kognitive Networks to any network installation

image 72

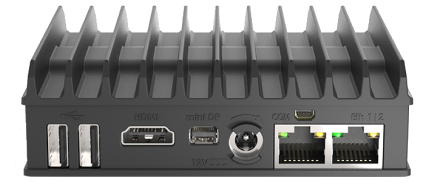

EdgeFit 2 - Back View
image 73

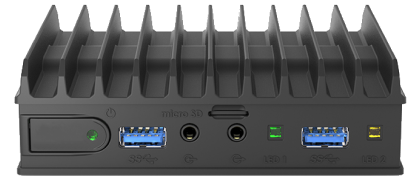

EdgeFit 2 - Front View
WAN Management Supports up to 5x WAN sources
Ethernet 2x GE ports, additional 4x GE ports using USB expansion
Network Configurability Up to 300 Clients, 15 VLAN Networks; Stateful Firewall
Compute Power Intel x86 Atom or Celeron class processor ; 8 GB RAM, 128 GB
Expansion 2x USB 3.0 ports – 5G modem adapter supported
Cooling Passive, Fanless – Silent
Mounting Standalone / Universal / DIN mount kit available
Power +12VDC (30W Max); 100-240 VAC, 50-60 Hz (AC/DC Power Supply Included)
Physical 4.4” x 3.4” x 1.4” / 111 x 85 x 35 mm – 2.25 lbs / 1 kg
Environmental Operating temp: -10 to +50 C; Humidity up to 95%, non-condensing
Warranty 1 year limited

The Most Powerful Platform for Connectivity

Redefining the standards for Network Management with the most comprehensive toolset for organizations with remote connectivity needs.
