EdgeAntenna 5G X integrates six directional antennas with three 5G modems for the highest possible throughput

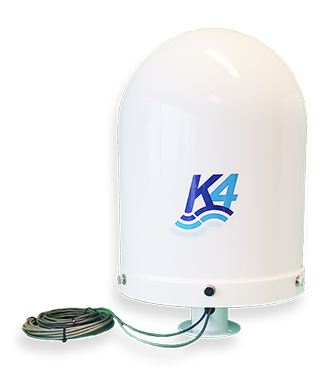

onedome-5g-ban

Multi modem - High Gain Directional Antenna System

K4 Edge Services – High Throughput

The K4 EdgeAntenna 5G X provides superior Cellular and Marina Wi-Fi connectivity for the highest possible throughput, near or very far offshore

Multi-modem, high gain sectorized antenna system supports high data rate cellular 5G with 2x2 WiFi, as client or AP

Supports up to 24 SIM cards -8 SIM cards per modem, routable manually or with predictive analytics

Use K4 provided SIMs and service or personal SIM cards and service plans

Unmatched, best-in-class offshore connectivity, with advanced bandwidth bonding and automatic cellular carrier selection

Simple to install, all-enclosed dome - requires only ethernet & power; no coax cable runs

Specifications

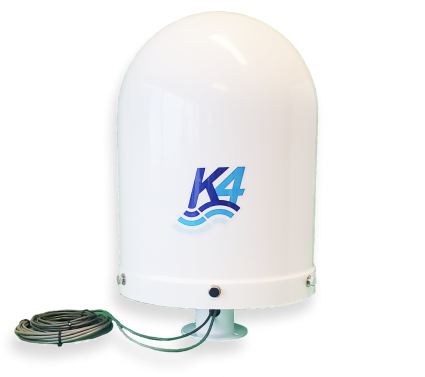

OneDome_K4_trans-big
EdgeAntenna 5G X

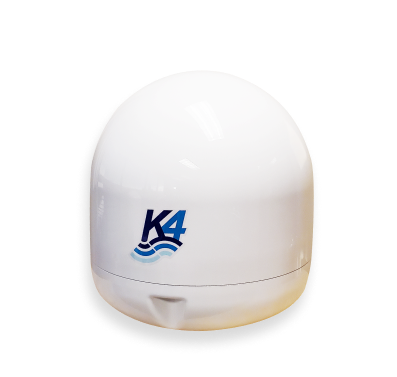

OneDome_i5_trans_2-bigg
EdgeAntenna 5G X - i5
Antenna Systems 6x Directional High Gain Cellular Antennas, Omni WiFi, powered GNSS/GPS
WAN – Cellular 3x 5G Modems CAT20 4G fallback – 13.50 Gbps DL/1.98 Gbps UL peak combined
SIM Bank 3x SIM banks of 8x 2FF(Mini) SIM Slots – 24 total SIM cards
WAN – WiFi 802.11 ac/a/b/g/n 2×2 MIMO, 1166 Mbps
GNSS / Navigation GPS, GLONASS, Galileo, BeiDou – with logging and carrier awareness
Network Configurability 500 Clients, 30 VLAN Networks, Stateful Firewall
LAN Interface 1x 1000 Mbps RJ45 – LAN/Client with DHCP
Power +12VDC (200W Max); 100-240 VAC, 50-60 Hz (AC/DC Power Supply Included)
Physical 25.2” (64 cm) height x 17” (43 cm) diameter – 45 lbs / 20.5 kgs : K4 configuration
Environmental Operating temp: 0 to +50 C; Humidity up to 90%, non-condensing
Warranty 1 year limited
>
