Ascent Modem 5G

Ascent Modem 5G

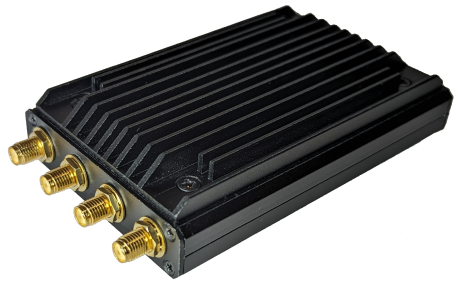

The Ascent Modem by Kognitive Networks is a 5G cellular modem featuring dual SIM functionality and USB-C for data and power. It integrates with Kognitive EdgeOS for advanced connection control and bandwidth bonding.

Designed for versatile environments, it offers 5G connectivity with 4G/LTE fallback, suitable for urban and rural areas. The modem supports high bandwidth and includes 4×4 MIMO with external antennas required. It’s compatible with various other operating systems, including Linux and Windows 10/11, making it a flexible option for diverse applications.

edgeascent
networks-edge-logo

5G Cellular Modem

Dual SIM, USB-C for data and power

Kognitive Edge OS integration for advanced connection control and bandwidth bonding

5G connectivity with 4G/ LTE fallback for use in dense urban areas or remote rural locations

Standalone connectivity USB 3.2 - compatible with Linux, Android, and Windows 10/11

4x4 MIMO - External Antennas (SMA) Required

Specifications

Kognitive Edge Ascent Modem (5G)

image 74

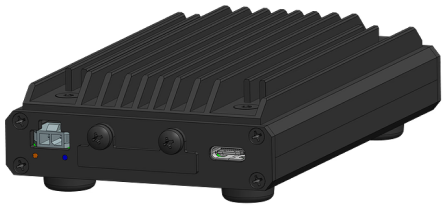

Ascent Modem - Back View
image 75

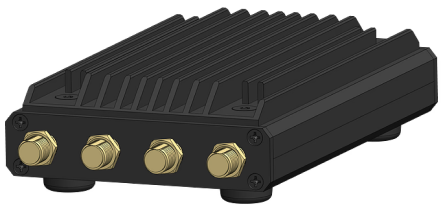

Ascent Modem - Front View
Cellular WAN Interface 5G SA / NSA, 4G LTE — 4×4 MIMO
SIM Slots 2x nano SIM
Throughput Peak DL/UL Mbps: 5G NSA 3400/550, 5G SA 2400/900, LTE 1600/200 CAT-19/CAT-18
Connectors 4x SMA-F Cellular, 2-pin Molex External Power, USB Type C
Power & Data USB3.2, backwards compatible with USB2.1 [Opt. Ext. Power: +9 VDC to +24 VDC]
Power Consumption 5W nominal, 8W max*
Physical 113.4mm x 67.3mm x 27 mm / 4.5” x 2.75” x 1.1” – 0.45 lbs* / 200g
Environmental Op temp: -10 to +50 C*; Humidity up to 95%, non-condensing*
Certifications CE, FCC, RoHs
Carrier Certifications Certified for use on ATT, T-Mobile, Verizon
Warranty 1 year limited

Certified for Use on:

AT&T
Verizon
T-Mobile

Compatible with:

mobilemark
poynting-antennas
