EdgeFit 4

EdgeServer - 4 ports

A cloud managed edge platform providing advanced SD-WAN, Security, QoS, and LAN services, the EdgeFit 4 is the flexible network management solution that fits anywhere.

Running full Edge OS, the Fit 4 provides the right amount of features for targeted installs and can be configured to do almost anything – including bonding 4G/5G and Starlink – right out of the box.


Flexible Network Management

A cloud managed edge platform providing advanced SDWAN, Security, QoS, and LAN services

Powerful user interface with Real-Time Metering and Analytics

Combine and control WAN sources with Advanced Routing and Bandwidth Bonding

Protect and Secure Network Integrity with Deep Packet Inspection (DPI), Traffic Policies, and VPN

Compact, Fanless


Quickly add Kognitive Networks to any network installation

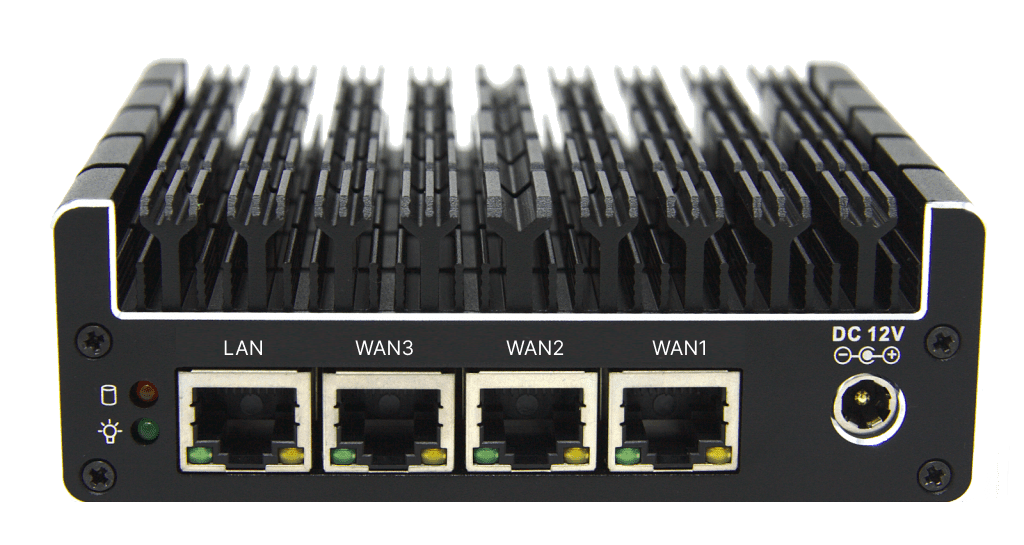

EdgeFit 4 - Back View

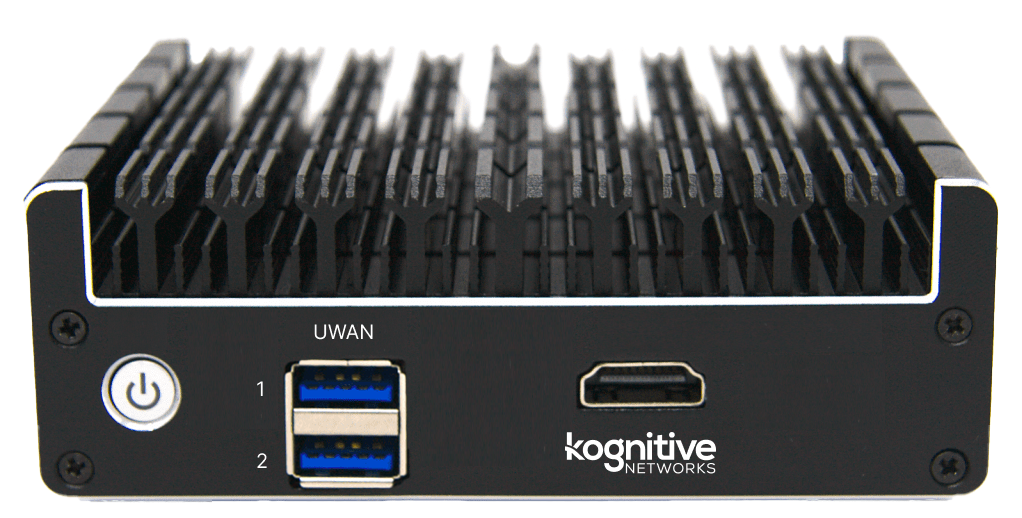

EdgeFit 4 - Front View
WAN Management Supports up to 12x WAN sources with reconfigurable ports
Ethernet 4x GE ports, additional 2x GE ports using USB expansion
Network Configurability Up to 300 Clients, 15 VLAN Networks; Stateful Firewall
Compute Power Intel Celeron class processor ; 8 GB RAM, 120 GB Storage
Expansion 2x USB 3.0 ports – 5G modem adapter supported
Cooling Passive, Fanless – Silent
Mounting Standalone / Universal / DIN mount kit available
Power +12VDC (20W Max); 100-240 VAC, 50-60 Hz (AC/DC Power Supply Included)
Physical 4.5” x 4.3” x 1.5” / 115 x 107.5 x 39 mm – 2.8 lbs / 1.2 kg
Environmental Operating temp: -10 to +50 C; Humidity up to 95%, non-condensing
Warranty 1 year limited
