A full featured LTE and satellite system with 4 LTE radios using 12 SIM cards and equipped with up to 2 VSAT modems

onebox-a

Maritime Internet and LAN Management system

K4 Edge Services

K4 EdgeFusion provides WiFi, LTE (4x), and VSAT (2x) Internet networks, voice/PBX services, and LAN service integration all within a single platform that is easily managed via the K4 Edge App

Integrated 4x Cellular modems, up to 2x VSAT modems, 2x2 Wi-Fi, 2x Aux WAN sources

12 SIM cards routable to 4 modems, manually or with predictive analytics

Data-driven SDWAN optimization, bandwidth bonding, and hardware switching

2u rackmount server with router, RF interfaces, and 8 port VOIP voice gateway

Specifications

onebox-b

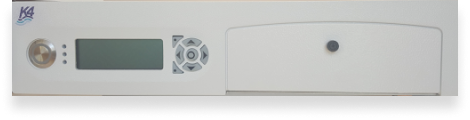

EdgeFusion Front View
onebox-c

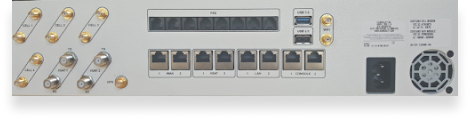

EdgeFusion Rear View
VSAT Inputs 1x or 2x Integrated iDirect VSAT modem
Cellular Modems 4x CAT 12 4G/LTE modem – 2400 Mbps DL / 600 Mbps UL peak combined
SIM Bank 12 Micro (Full Size) SIM cards, assignable to any modem
WAN Supports 12 WAN sources with 7 physical ports; Advanced Bandwidth Bonding
GNSS / Navigation GPS, GLONASS, Galileo, BeiDou – with logging and carrier awareness
Network Configurabilty 500 Clients, 30 VLAN Networks, Stateful Firewall
LAN Interface Flexible LAN/WAN assignment on all ports – LAN/Clients, with DHCP
Power 100-240 VAC, 50-60 Hz – 100W Typical
Physical 2u 19″ Rackmount, (18.0″ x 16.0″ x 3.5″), 16 lbs
Environmental Operating temp: 0 to +50 C; Humidity up to 90%, non-condensing
Warranty 1 year limited
>
