EdgeAscent 5G Modem

Ultra Fast Throughput, Worldwide
5G + 4G/LTE, MIMO Carrier Aggregation Supports high bandwidth C-Band USB-C powered, compact

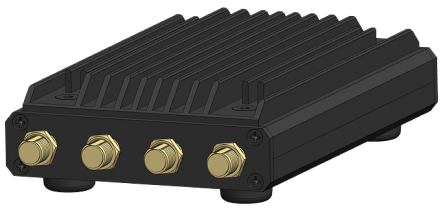

image 76

5G Cellular Modem

Dual SIM, USB-C for data and power

Kognitive EdgeOS integration for advanced connection control and bandwidth bonding

5G connectivity with 4G/ LTE fallback for use in dense urban areas or remote rural locations

Standalone connectivity USB 3.2 - compatible with Linux, Mac, Android, and Windows 10/11

4x4 MIMO - External Antennas (SMA) Required

Specifications

Edge Ascent Modem (5G)

image 74
Ascent Modem - Back View
image 75
Ascent Modem - Front View
Cellular WAN Interface 5G SA / NSA, 4G LTE — 4×4 MIMO
SIM Slots 2x nano SIM
Throughput Peak DL/UL Mbps: 5G NSA 3400/550, 5G SA 2400/900, LTE 1600/200 CAT-19/CAT-18
Connectors 4x SMA-F Cellular, 2-pin Molex External Power, USB Type C
Power & Data USB3.2, backwards compatible with USB2.1 [Opt. Ext. Power: +9 VDC to +24 VDC]
Power Consumption 5W nominal, 8W max*
Physical 113.4mm x 67.3mm x 27 mm / 4.5” x 2.75” x 1.1” – 0.45 lbs* / 200g
Environmental Op temp: -10 to +50 C*; Humidity up to 95%, non-condensing*
Certifications CE, FCC, RoHs
US Carrier Certifications Verizon*, T-Mobile*, ATT* *Certifications pending
Warranty 1 year limited
>
